HIGH PERFORMANCE WELDLESS FLANGE TO PIPE CONNECTIONS

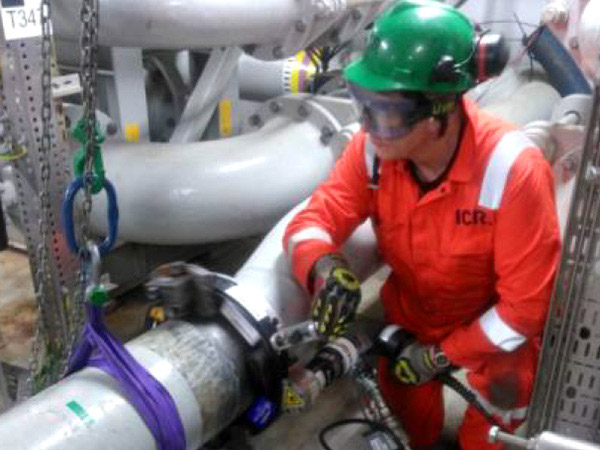

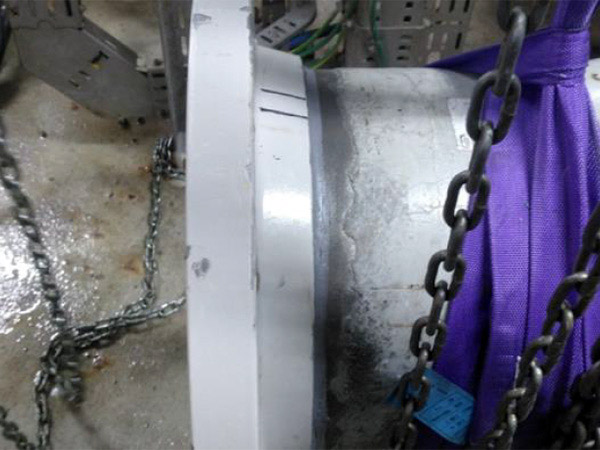

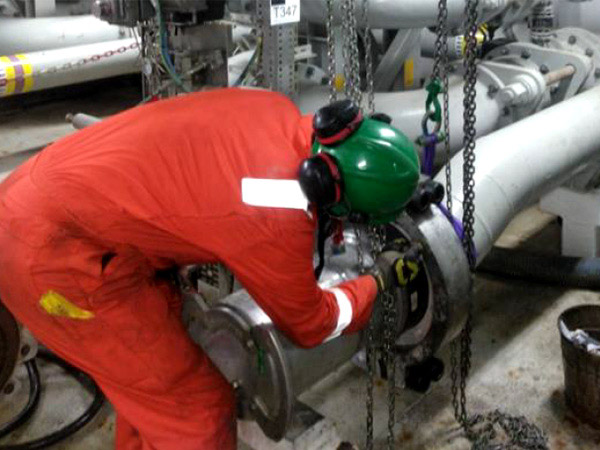

ICR's Quickflange™ technology uses a modified flange with patented internal grooves that fit over the pipe end. When combined with our Quickflange activation tool, installing the connector is quick and easy. After isolating the line and cutting the pipe straight, the Quickflange™ is placed flush with the pipe edge. The hydraulic tool is then aligned and activated to the required pressure, expanding the segments to secure the pipe into the grooves of the Quickflange™ connector. Reversing the tool completes the installation, creating a permanent gas-tight seal.

• Benefits
• Permanent solution
• 100% coldwork solution with ZERO emissions
• 80% time saving over traditional welding methods
• Over 20 years of experience and a proven track record
• Industry-recognized approval with our DNV and ABS Type Approvals
• Access to ICR’s highly trained, multi-skilled global technicians
• Third-party training for clients and partners globally
• Off-the-shelf product ensuring fast turnaround particularly for urgent repairs

• What We Can Repair
• Hydrocarbon gas and liquid systems
• Remote locations using rope access
• Close proximity to heat-affected zones
• Pipework modifications and re-routing
• Pipework construction
• Decommissioning
• New spool tie-ins
• Blinding of lines
• Replacement of existing flanges
• Onshore and offshore capabilities
